Tectus® Knee Straighten

Intelligent Knee Support for More Confident Mobility

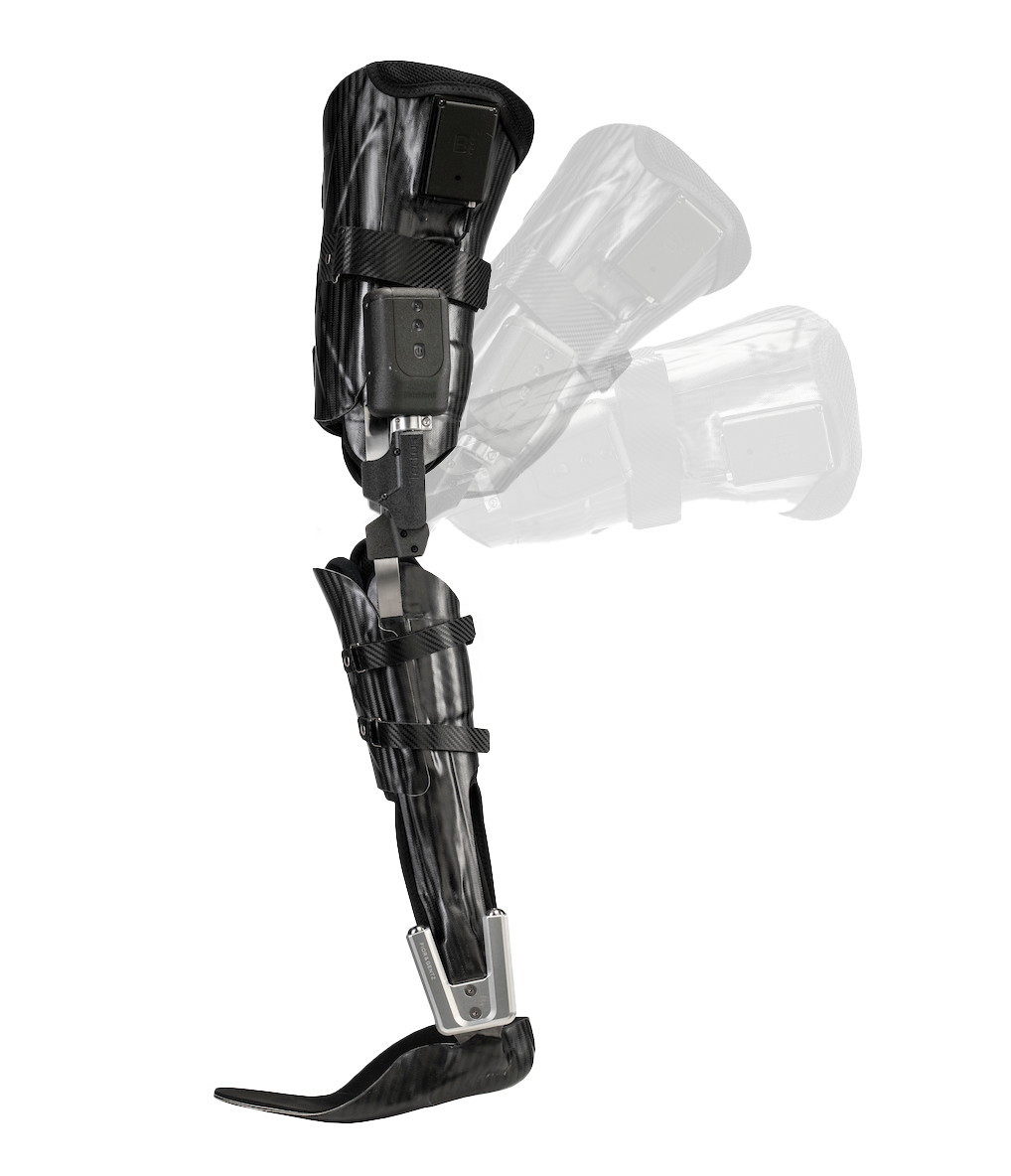

The Tectus® Knee Straighten is an advanced robotic and microprocessor-controlled orthotic solution designed to support individuals with impaired lower-limb mobility. It combines a custom-fitted KAFO with intelligent knee technology to provide controlled support throughout different stages of walking.

Unlike a conventional locked knee brace, Tectus® uses sensors, hydraulic resistance, and spring-assist technology to respond to the wearer’s movement. The system can automatically adjust knee behavior during walking, standing, sitting, and other appropriate activities.

Key Features

• Microprocessor-controlled knee: Intelligent technology monitors movement and adjusts knee support.
• Controlled stance release: Sensors help determine when the knee should transition into the swing phase.
• Spring assistance: Adjustable spring assistance supports heel-rise control and knee extension during swing.
• Multiple activity modes: Includes Walk, Sit, Stairs, Lock, and Free modes for different activities.
• Walking support: Designed to provide stability during stance while allowing controlled movement during swing.
• Manual Lock Mode: Helps prevent knee flexion when prolonged standing support is required.
• Sit Mode: Provides controlled resistance and support when sitting and standing.
• Stairs Mode: Provides appropriate resistance for stair descent.
• Free Mode: Allows the leg to move freely when appropriate.
• Digital display: Provides information such as activity mode, battery status, step count, and safety warnings.
• Slim and lightweight module: The Tectus® microprocessor module weighs approximately 660 g.
• Long battery life: Up to approximately 18 hours of continuous use, depending on conditions.
• Rechargeable battery: Full charging takes approximately 2 hours.
• IP54-rated module: Provides protection against limited dust and water exposure; it is not designed for immersion or showering.

Who Is Tectus® Designed For?

Tectus® may be appropriate for individuals with certain forms of lower-limb paralysis or weakness, including some people with spinal injuries, neurological conditions, orthopaedic injuries, stroke, or poliomyelitis.

Suitability is determined through an individual clinical assessment. The manufacturer states that users require appropriate hip flexion ability and independent standing capability, among other selection criteria.

Rehabilitation & Mobility Applications

Tectus® can be used as part of an appropriate walking rehabilitation, mobility training, and orthotic support program. It is designed to help users manage everyday activities while providing stability and controlled knee movement.

For rehabilitation professionals, Tectus® can provide an advanced technology platform for supporting gait training and mobility goals.

Manufacturer/Product Information: Learn more about Tectus® from Blatchford

Important Information

Tectus® is a specialized medical orthotic device and requires professional evaluation, fitting, programming, and training. Product suitability depends on individual clinical circumstances. Always follow the manufacturer’s instructions and consult an appropriately qualified healthcare or orthotic professional before use.

Specifications, availability, indications, contraindications, and product features may change. This description is for general informational purposes and does not constitute medical advice or guarantee individual outcomes.
